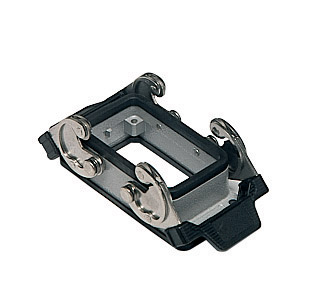

Bulkhead mounting housing, C-TYPE series, with 2 levers, size "57.27"
| Product description | |
| Product type | Bulkhead mounting housing |
| Series | C-TYPE |
| Closing type | with 2 levers |
| Size | size 57.27 |
| Cable entry | without cable entry |
| Technical data | |
| IP degree of protection | IP65 / IP66 / IP69 |
| Further technical details | |
| Weight | 157,50 g |
| Operating temperature range (min, max) | -40°C...+125°C |
| Material properties | |
| Other materials | Lever: Stainless steel, polyamide (PA) Gasket: NBR |
| Colour | RAL 7040 grey |
| RoHs conformity | compliant |
| China RoHs - EFUP | e |
| REACH SVHC substances | no |
| Approvals / Standards | |
| Certifications | DNV, BV |
| UL | ECBT2 |
| cUL | ECBT8 |
| General ordering information | |
| EAN13 code | 8015747017398 |
| eCl@ss 8.1 | 27440202 |
| ETIM 7.0 | EC000437 |
| Packaging Information | |
| Packaging length | 380,00 mm |
| Packaging height | 230,00 mm |
| Packaging width | 290,00 mm |
| Packaging weight | 6,94 kg |
| Packaging volume | 25,35 dm³ |
| Packaging description | Carton box |
| Packaging quantity | 40 Pcs |
| Packaging EAN code | 8015747017404 |
| Sub-packaging weight | 0,87 kg |
| Sub-packaging description | Plastic packaging |
| Sub-packaging quantity | 5 Pcs |
| Sub-packaging EAN barcode | 8015747017411 |
